Hirschmann AK 2 S black
Details

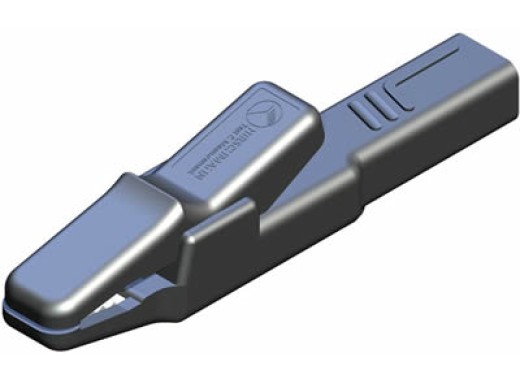

The AK 2 S are insulated, high-strength alligator clips. Based on the 4 mm pin system, these alligator clips can be connected to most standard cables. The flat part of the jaws allows even the finest wires to be clamped tightly. The contact resistance is only 10 mΩ, thanks to the powerful multiple-spring tip. The clip is made from nickel which enables this extremely low resistance. It is also possible to fix a test lead using a screw in the housing which will prevent it from breaking free.
The clips can manage tested voltages of 60 V DC and currents of 25 A. They are available in black or red.
Specifications
| Contact resistance | 10 mΩ |
| Voltage | 30 V AC 60 V DC |
| Ampere | 25 A |
| Maximum cable diameter | 4 mm |
| Connector pin | 4 mm |
| Housing material | PP |
