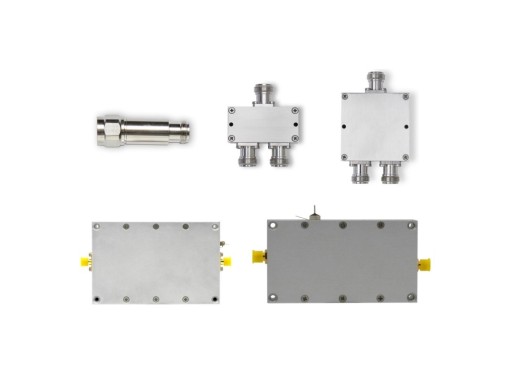

Tekbox TBRFH2, H3, H5, H6 and H7 RF housings
Details
The Tekbox TBRFH2, H3, H5, H6 and H7 housings are ideal for accommodating passive or active RF building blocks on PCB's, such as amplifiers, power splitters, directional couplers, mixers, etc. Made from aluminium, they are available in various forms, sizes and with various connectors. The inner dimensions determine the maximum size of the PCB.
If you are looking for more modular and/or smaller housings, please check out the Tekbox TBRFH1 series.
Model overview
| Type | Outer dimensions (mm) | Inner dimensions (mm) | Connectors | Feed through capacitor | Price |
|---|---|---|---|---|---|
| TBRFH2 | ⌀21 x 58 | 15.5 x 13.6 x 1.2 | BNC-Female to BNC-Male | No | |
| TBRFH3-5527 | 55 x 27.5 x 21.5 | 45 x 14.5 x 11.5 | N-Female to N-Female | No | |
| TBRFH3-5555 | 55 x 55 x 21.5 | 45 x 45 x 11.5 | N-Female to N-Female | No | |
| TBRFH5 | 68 x 106 x 32 | 54 x 98 x 22 | SMA-Female to SMA-Female | Yes | |
| TBRFH6 | 50 x 91.4 x 18 | 39.7 x 84.4 x 9.5 | SMA-Female to SMA-Female | Yes | |
| TBRFH7 | ⌀17 x 62.7 | 15.5 x 13.6 x 1.2 | SMA-Female to SMA-Female | No |
Downloads
| Tekbox TBRFH2 RF housing datasheet |  (245.31 KB) | Download |
| Tekbox TBRFH3 & H4 RF housing datasheet | (1.41 MB) | Download |
| Tekbox TBRFH5 RF housing datasheet | (436.88 KB) | Download |
| Tekbox TBRFH6 RF housing datasheet | (346.13 KB) | Download |
| Tekbox TBRFH7 RF housing datasheet | (284.49 KB) | Download |
