Details

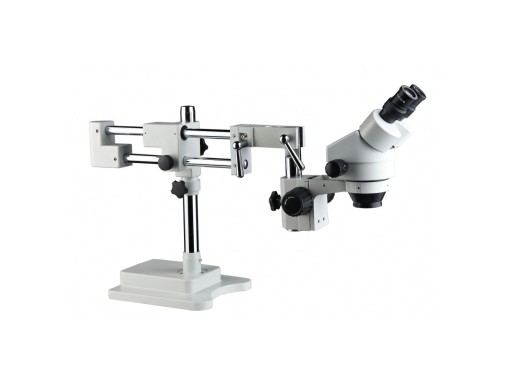

The SM-4T stereo microscope provides precise and clear images. A stereo microscope provides an in-depth image, making it possible to solder SMD components for example.

Trinocular

The SM-4TP is trinocular, which means that there is a third port available to connect a camera using the C-mount adapter. The SM-4T is not simul-focal and there is no camera port available. If you plan on using the camera frequently, we recommend using the SM-4TP.

7x to 45x magnification

The SM-4T microscope offers a magnification from 7x to 45x at a maximum working height of 100mm. For use with electronics it is best to use a barlow lens 0.5x. This halves the magnification of the microscope and doubles the working distance (the distance between the lens and the working platform).

Double arm

The microscope has a solid base with a sound, dual arm that can be positioned freely. You can install it quickly on top of, for example, a PCB or the phone you want to repair. The dual arm can easily be pulled towards you and pushed away, as opposed to a single arm.

Model overview

M series microscopes are characterised by their solid manufacturing quality, clear vision and high ease of use. The table below shows the differences between the microscopes.
ModelArmSimul-focalIncluded extra accessoriesPrice
SM-3T Single
No
None
407.16 Inkl. MwSt: 407,16 € Exkl. MwSt: 342,15 €
SM-3TP Single
Yes
None
476.98 Inkl. MwSt: 476,98 € Exkl. MwSt: 400,82 €
SM-4T Dual
No
None
476.98 Inkl. MwSt: 476,98 € Exkl. MwSt: 400,82 €
SM-4TP Dual
Yes
- Premium rubber eyepieces 551.73 Inkl. MwSt: 551,73 € Exkl. MwSt: 463,64 €
SM-4TP Black Edition Dual
Yes
- Premium rubber eyepieces
- 60 LED ring lighting
- Barlow lens 0.5x
638.27 Inkl. MwSt: 638,27 € Exkl. MwSt: 536,36 €
ZM-4T Dual
Yes
None
781.86 Inkl. MwSt: 781,86 € Exkl. MwSt: 657,03 €
SM-8TP Swivel
Yes
- Premium rubber eyepieces 543.85 Inkl. MwSt: 543,85 € Exkl. MwSt: 457,02 €

Specifications

TypeSM-4T
Dioptre correction+/- 5dp
Pupil spaceAdjustable (55-75 mm)
Shipping weight~ 25kg
SKUSZM7045-STL2

Optional accessories

LED ring lighting Without illumination, it can get very dark under a microscope. So don't forget to order lighting.

Led-ring

Dimmbarer LED-Ring für Mikroskope 60 LEDs
48.19 inkl. 19% MwSt.: 48,19 € Exkl. MwSt: 40,50 €
Info
Barlow lens 0.5x A barlow lens is mounted at the bottom of the microscope's lens, halves the microscope's magnification and doubles the working distance (the distance between the lens and the working platform).

Barlow lens 0.5x

0,5fach-Barlow-Linse für Mikroskope
38.36 inkl. 19% MwSt.: 38,36 € Exkl. MwSt: 32,24 €
Info
C-mount adapter 0.35x A 0.35x C-mount adapter enables you to connect a camera to the microscope.

C-mount adapter 0.35x

Mikroskop C-Mount-Adapter 0,35x (Klemmentyp)
58.02 inkl. 19% MwSt.: 58,02 € Exkl. MwSt: 48,76 €
Info
2K camera A camera with HDMI output and storage capabilities with 2K resolution. If one would need a camera with a higher resolution, we would recommend the 4K camera.

2K camera

HDMI-Kamera für Mikroskop 1080p 60fps
244.88 inkl. 19% MwSt.: 244,88 € Exkl. MwSt: 205,78 €
Info
Premium rubber eyepieces Rubber eyepieces provide more comfort and reduces the incidence of light.

Premium rubber eyepieces

Hochwertige Gummiaugenmuscheln
7.87 inkl. 19% MwSt.: 7,87 € Exkl. MwSt: 6,61 €
Info

Accessories

The SM-4T microscope (tripod with arm, focus rack, eyepieces and lens) comes with the following accessories:

  • Rubber eyepiece protectors
  • Dust cover
