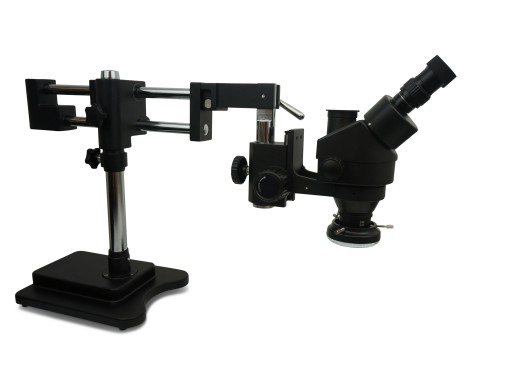

SM-4TP schwarzes Stereomikroskop 7-45x (kompletter Satz)
Details
The SM-4TP black stereo microscope provides precise and clear images. A stereo microscope provides an in-depth image, making it possible to solder SMD components for example. This set consists of the black SM-4TP stereomicroscope, a 60 LED ring lighting attachment and a Barlow 0.5x lens.
Trinocular and simul-focal
The SM-4TP is trinocular, which means that there is a third port available to connect a camera with the help of the C-mount adapter. The SM-4TP is simul-focal, so the camera can be used simultaneously with the two eyepieces.
7x to 45x magnification
The SM-4TP microscope offers a magnification from 7x to 45x at a maximum working height of 100mm. For use with electronics it is best to use the included barlow lens 0.5x. This halves the magnification of the microscope and doubles the working distance (the distance between the lens and the working platform).
Double arm
The microscope has a solid base with a sound, dual arm that can be positioned freely. You can install it quickly on top of, for example, a PCB or the phone you want to repair. The dual arm can easily be pulled towards you and pushed away, as opposed to a single arm.
Model overview
M series microscopes are characterised by their solid manufacturing quality, clear vision and high ease of use. The table below shows the differences between the microscopes.| Model | Arm | Simul-focal | Included extra accessories | Price |
|---|---|---|---|---|
| SM-3T | Single | No | None | |
| SM-3TP | Single | Yes | None | |
| SM-4T | Dual | No | None | |
| SM-4TP | Dual | Yes | - Premium rubber eyepieces | |
| SM-4TP Black Edition | Dual | Yes | - Premium rubber eyepieces - 60 LED ring lighting - Barlow lens 0.5x | |
| ZM-4T | Dual | Yes | None | |
| SM-8TP | Swivel | Yes | - Premium rubber eyepieces |
Specifications of the microscope
| Type | SM-4TP |
| Max. range | 20 mm |
| Dioptre correction | +/- 5dp |
| Pupil space | Adjustable (55-75 mm) |
| Included accessories | 60 LED ring lighting, Barlow lens 0.5x |
| Shipping weight | ~ 25kg |
| SKU | SZM7045-BLACK |
Optional accessories
| LED ring lighting | Without illumination, it can get very dark under a microscope. So don't forget to order an improved 144 dimmable LED ring lighting. | |
| Barlow lens 2x | A barlow lens is mounted at the bottom of the microscope's lens. This lens doubles the microscope's magnification and decreases the working distance by half (the distance between the lens and the working platform). | |
| C-mount adapter 0.35x | A 0.35x C-mount adapter enables you to connect a camera to the microscope. | |
| 2K camera | A camera with HDMI output and storage capabilities with 2K resolution. If one would need a camera with a higher resolution, we would recommend the 4K camera. | |
| Premium rubber eyepieces | Rubber eyepieces provide more comfort and reduces the incidence of light. (Already included) |
Accessories
The SM-4TP Black edition microscope (tripod with arm, focus rack, eyepieces and lens) comes with the following accessories:
- Premium rubber eyepieces
- Rubber eyepiece protectors
- LED-lighting ring
- Barlow lens 0.5x
- Dust cover
Vor-und Nachteile
- Erleichtert das SMD-Löten
- Hohe Bildqualität
- Solide Ausführung
- Schwer (ca. 25 kg)
Video's
Downloads
| SM-4TP datasheet |
 (131.31 KB) |
Download |
